Less honorary seat: PC

Upper cover: PC

O-RING: Oil-emitting silicone

Tie rod: PP

Technical Requirements

——

1. Damping and Cushioning Direction: V - Unidirectional

2. Torque Testing Standard: 23±2°C, speed of 2400 r/min

3. Torque Range: 1.0-4.5 kgf.cm

4. Effective Damping Stroke: 60mm

5. Static High and Low-Temperature Requirement: -40°C to 90°C

6. Damping Durability Requirement: >20,000 cycles

7. Flame Resistance Compliance:

- GB 8410 "Standard for the Burning Characteristics of Materials Used in Automotive Interior Parts"

- Combustion rate in Class D should be less than 100mm/min

8. Restricted Substances Compliance:

- GB/T 30512 "Standard for Requirements of Restricted Substances in Automotive Components"

Features of Air Damper for  Glove Box Dampers

Designed for glove boxes: Suitable for glove boxes of models such as BYD Song, Yangwang, and Galaxy L6, ensuring good adaptability and reliability.

One-way damping performance: Provides V-shaped one-way cushioning and shock absorption, effectively preventing sudden impact and improving safety of use.

Reliable durability: After rigorous testing, it can withstand more than 20,000 opening and closing cycles, ensuring stability and durability for long-term use.

Wide operating temperature range: It can work normally in static high and low temperature environments from -40°C to 90°C, adapting to various extreme climate conditions.

Comply with safety standards: Meets the GB 8410 standard on the combustion characteristics of automotive interior parts and the GB/T 30512 requirements for restricted substances in automotive components, ensuring the safety and environmental protection of materials.

Torque changes with ambient temperature: At different temperatures, the torque of the damper will adjust accordingly, increasing at low temperatures and decreasing at high temperatures to adapt to different operating conditions.

Innovative design: The innovative design adopted by Teao not only enhances the functionality of the product, but also optimizes the user experience and avoids the abruptness during use.

Welcome your consultation!

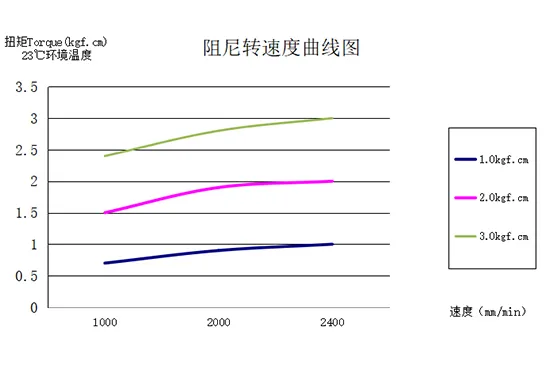

Characteristic Damper torque (23°C ambient temperature) changes with speed. Typically, torque increases with increasing rpm, as shown in the figure above

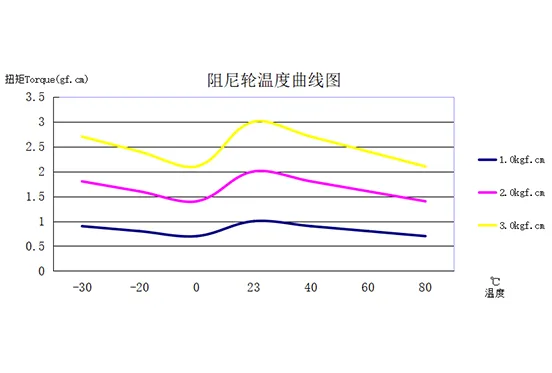

Temperature - torque characteristic (20r/min) The torque of the damper (speed: 20r/min) changes with changes in ambient temperature. Typically, torque increases at lower temperatures and decreases at higher temperatures, as shown in the graph above
