Product Details
Component Parts
——
Less honorary seat: POM
Upper cover: POM
Rotor: PA66
Steel sheet: stainless steel
O-RING: VMQ
Fastener: POM
Oil: silicone oil
Technical Specifications
——
 |
 |
|
Characteristic

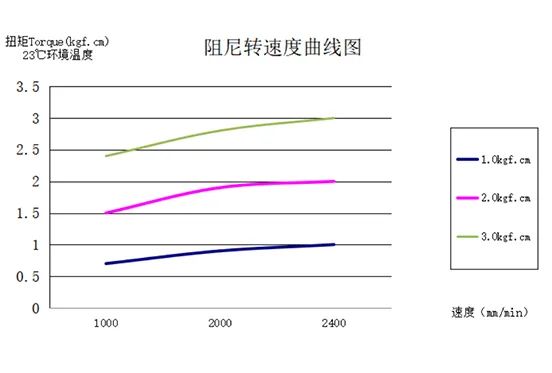

Damper torque (23°C ambient temperature) changes with speed. Typically, torque increases with increasing rpm, as shown in the figure above |

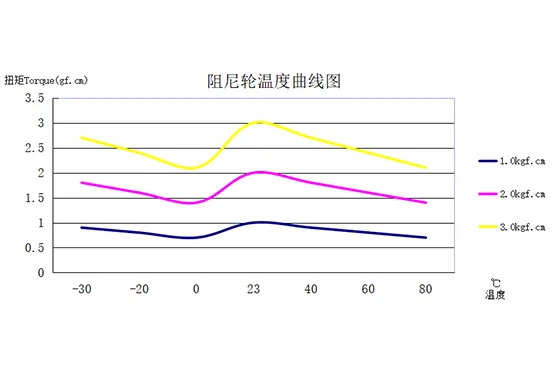

Temperature - torque characteristic (20r/min)
The torque of the damper (speed: 20r/min) changes with changes in ambient temperature. Typically, torque increases at lower temperatures and decreases at higher temperatures, as shown in the graph above |
Component Parts
——
Less honorary seat: POM
Upper cover: POM
Rotor: PA66
Steel sheet: stainless steel
O-RING: VMQ
Fastener: POM
Oil: silicone oil
Technical Specifications
——
|
|
|
Characteristic
Damper torque (23°C ambient temperature) changes with speed. Typically, torque increases with increasing rpm, as shown in the figure above |
Temperature - torque characteristic (20r/min)
The torque of the damper (speed: 20r/min) changes with changes in ambient temperature. Typically, torque increases at lower temperatures and decreases at higher temperatures, as shown in the graph above |
Next: NO MORE
